In today's industrial and commercial sectors, the demand for efficient, reliable, and hygienic ice production is higher than ever. Whether for food processing, healthcare, or chemical industries, the quality of ice can significantly impact operations. Among the various ice-making technologies available, the tube ice machine stands out for its unique characteristics and versatility. In this article, we'll take a closer look at the Thermojinn Tube Ice Machine, exploring its innovative structure, key features, and wide-ranging applications.
Ⅰ.What is a Tube Ice Machine?
A tube ice machine produces cylindrical, hollow tubes of ice, typically with diameters ranging from 16mm to 50mm. These ice tubes are known for their slow melting rate, high cooling capacity, and ease of handling. Unlike flake or cube ice, tube ice is less likely to clump together, making it ideal for many industrial and commercial uses.

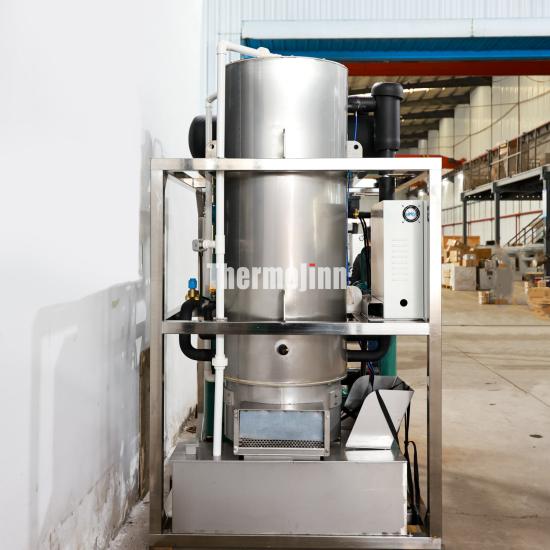

Structure and Working Principle of Thermojinn Tube Ice Machines
Thermojinn has engineered its tube ice machines with precision and durability in mind. Let's break down the key structural components and the ice-making process.
Ⅱ. Key Components:
Evaporator: This is the heart of the machine. The evaporator consists of vertical stainless steel tubes where water flows and freezes. Thermojinn uses high-grade materials to ensure efficient heat exchange and longevity.
Compressor: Provides the necessary refrigerant compression for the cooling cycle. Thermojinn employs energy-efficient compressors that reduce power consumption while maintaining performance.

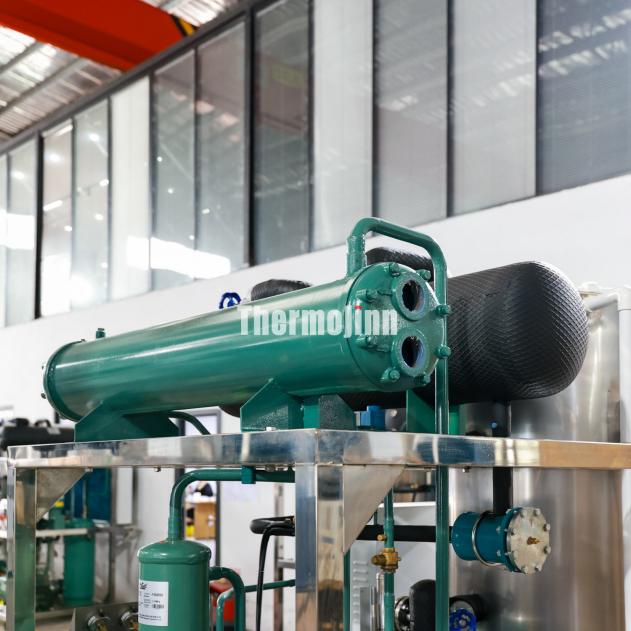

Condenser: Releases heat from the refrigerant to the environment. Available in air-cooled or water-cooled models depending on installation requirements.
Storage Bin: Insulated bin that stores ice hygienically until discharge.
Ice Cutting System: Once the ice reaches the desired thickness, a hot gas defrost cycle releases the ice tubes, which are then cut into uniform lengths by a rotating cutter.

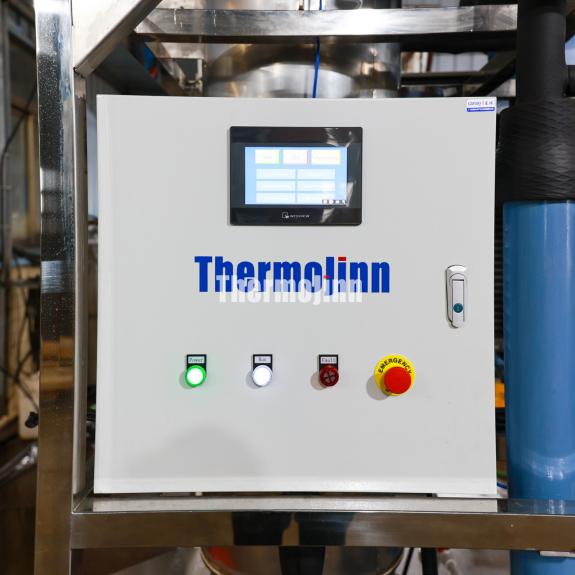

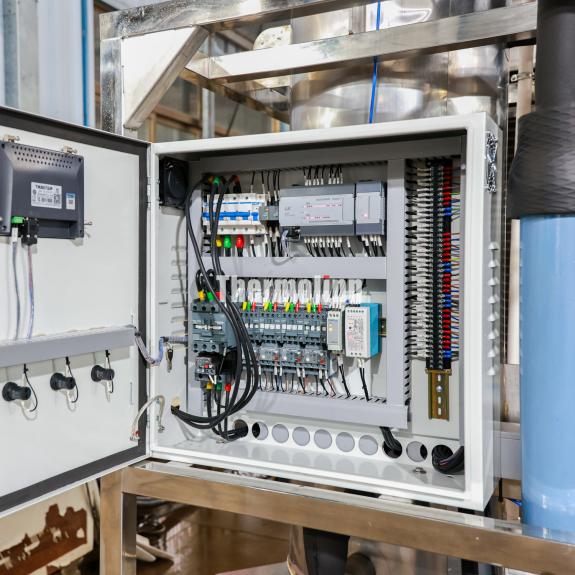

Control System: User-friendly PLC or microprocessor controls allow for easy operation and monitoring.
Ⅲ. Working Cycle:
1. Freezing: Water is pumped over the inner surface of the evaporator tubes, forming a layer of ice.
2. Harvesting: The defrost cycle briefly warms the evaporator, causing the ice tubes to slide down.

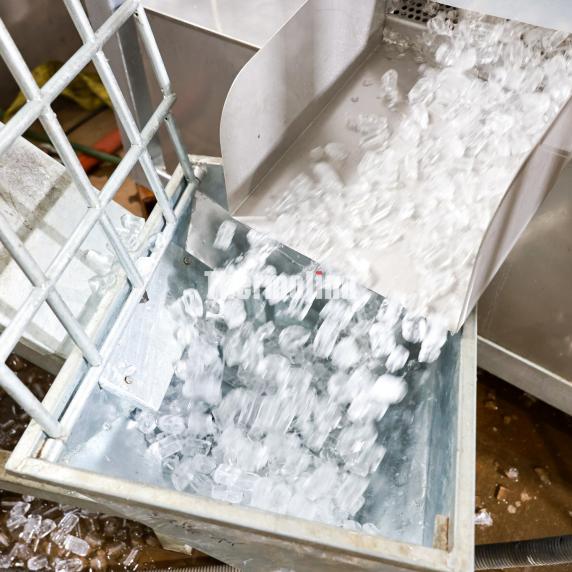

3. Cutting & Storage: Ice tubes are cut into segments and conveyed to the storage bin.
Ⅳ. Key Features of Thermojinn Tube Ice Machines
Thermojinn machines are designed with a focus on efficiency, hygiene, and reliability.
1. High Energy Efficiency
Advanced refrigeration cycles and insulated components reduce electricity usage.
Eco-friendly refrigerants comply with international environmental standards.
2. Superior Ice Quality
Produces clear, hard, and cylindrical ice with low melting rates.
Ideal for applications where slow melting and maximum cooling are required.
3. Hygienic Design
Food-grade stainless steel in contact with ice and water.
Automated cleaning systems (CIP) reduce contamination risks.
4. Robust Construction
Durable components ensure long service life, even in demanding environments.
Corrosion-resistant coatings protect against harsh conditions.
5. User-Friendly Operation
Intuitive controls with real-time monitoring and diagnostics.
Low maintenance requirements thanks to smart engineering.
Ⅴ. Applications of Tube Ice Machines
Thanks to their unique properties, Thermojinn tube ice machines are used across various industries:
1. Food & Beverage Industry
Perfect for seafood processing, poultry chilling, and bakeries.
Used in supermarkets and fish markets to display products fresh.
Beverage production and distribution for slow, controlled cooling.
2. Healthcare & Pharmaceuticals
Provides cooling for medical samples, laboratories, and blood banks.
Used in chemical reactors that require precise temperature control.
3. Chemical & Concrete Industries
Tube ice is mixed with concrete to regulate temperature during large pours.
Cooling for chemical processes and industrial reactors.
4. Hospitality & Retail
Hotels, restaurants, and bars use tube ice for drinks and buffets due to its aesthetic appeal and slow melt.
5. Agriculture & Fishing
Preserves harvest freshness during transport.
Keeps fishing catches fresh on boats and at processing plants.
Ⅵ. Why Choose Thermojinn?
1. Thermojinn stands out in the highly competitive ice machine market by combining engineering precision with a deep understanding of industrial needs. Their tube ice machines undergo rigorous testing, offer excellent customer support, and provide customizable options to meet specific requirements. Whether you need a compact model for a hotel or a high-capacity system for a factory, Thermojinn can provide scalable solutions.
2. The Thermojinn Tube Ice Machine represents a smart investment for any business that relies on high-quality ice. Its efficient design, reliable performance, and versatile applications make it a top choice across multiple sectors. By understanding its structure and benefits, you can better appreciate how this technology can enhance your operations.
3. About Thermojinn: Thermojinn specializes in advanced ice-making solutions, offering a wide range of machines tailored to industrial, commercial, and hospitality needs. With a focus on sustainability and performance, Thermojinn continues to lead the market in innovative cooling technology.
